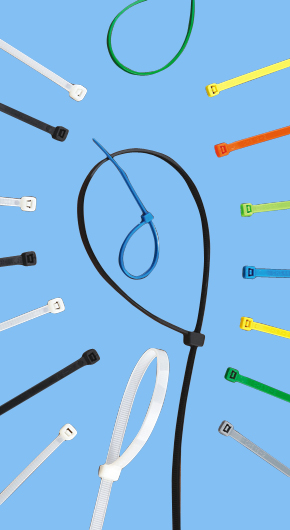

Nylon cable ties
¡¤ Material:Nylon 66, 94V-2 certificated by UL.Heat-resisting,Acid & erosion control, insulate well and not apt to age.
¡¤ Operating temperature£º-35¡æ to 85¡æ.
¡¤ Color:Natural(or white, standard color),UV black and other colors are available as requested. |
 |
| ITEM.NO. |
L |
W (mm) |
Bundle diameter E (mm) |
Min.loop tensile strength |
| INCH |
MM |
LBS |
KGS |
| JHS-3¡Á60 |
2 3/8" |
60 |
2.5 |
2-11 |
18 |
8 |
| JHS-3¡Á80 |
3 3/16" |
80 |
2.5 |
2-16 |
18 |
8 |
| JHS-3¡Á90 |
3 5/8" |
90 |
2.5 |
2-18 |
18 |
8 |
| JHS-3¡Á100 |
4" |
100 |
2.5 |
2-22 |
18 |
8 |
| JHS-3¡Á120 |
4 3/4" |
120 |
2.5 |
2-30 |
18 |
8 |
| JHS-3¡Á140 |
5 1/2" |
140 |
2.5 |
2-33 |
18 |
8 |
| JHS-3¡Á150 |
6" |
150 |
2.5 |
2-35 |
18 |
8 |
| JHS-3¡Á160 |
6 1/4" |
160 |
2.5 |
2-40 |
18 |
8 |
| JHS-3¡Á200 |
8" |
200 |
2.5 |
3-50 |
18 |
8 |
| *NEW JHS-4¡Á100 |
4" |
100 |
3.5 |
3-22 |
40 |
18 |
| JHS-4¡Á120 |
4 3/4" |
120 |
3.5 |
3-30 |
40 |
18 |
| JHS-4¡Á140 |
5 1/2" |
140 |
3.5 |
3-33 |
40 |
18 |
| JHS-4¡Á150 |
6" |
150 |
3.5 |
3-35 |
40 |
18 |
| JHS-4¡Á180 |
7" |
180 |
3.5 |
3-42 |
40 |
18 |
| JHS-4¡Á200 |
8" |
200 |
3.5 |
3-50 |
40 |
18 |
| JHS-4¡Á220 |
8 5/8" |
220 |
3.5 |
3-58 |
40 |
18 |
| JHS-4¡Á250 |
10" |
250 |
3.5 |
3-65 |
40 |
18 |
| JHS-4¡Á280 |
11" |
280 |
3.5 |
3-70 |
40 |
18 |
| JHS-4¡Á300 |
11 5/8" |
300 |
3.5 |
3-80 |
40 |
18 |
| JHS-4¡Á370 |
14 1/2" |
370 |
3.5 |
3-102 |
40 |
18 |
| JHS-5¡Á120 |
4 3/4" |
120 |
4.5 |
3-24 |
50 |
22 |
| JHS-5¡Á180 |
7" |
180 |
4.5 |
3-42 |
50 |
22 |
| JHS-5¡Á190 |
7 1/2" |
190 |
4.5 |
3-46 |
50 |
22 |
| JHS-5¡Á200 |
8" |
200 |
4.5 |
3-50 |
50 |
22 |
| JHS-5¡Á250 |
10" |
250 |
4.5 |
3-65 |
50 |
22 |
| JHS-5¡Á280 |
11" |
280 |
4.5 |
3-70 |
50 |
22 |
| JHS-5¡Á300 |
7 8/5" |
300 |
4.5 |
3-82 |
50 |
22 |
| JHS-5¡Á350 |
13 3/4" |
350 |
4.5 |
3-90 |
50 |
22 |
| JHS-5¡Á380 |
15" |
380 |
4.7 |
3-102 |
50 |
22 |
| JHS-5¡Á400 |
15 3/4" |
400 |
4.7 |
3-105 |
50 |
22 |
| JHS-5¡Á430 |
17" |
430 |
4.7 |
3-110 |
50 |
22 |
| JHS-5¡Á450 |
17 3/4" |
450 |
4.7 |
3-130 |
50 |
22 |
| JHS-5¡Á500 |
19 11/16" |
500 |
4.7 |
3-150 |
50 |
22 |
| JHS-8¡Á150 |
6" |
150 |
6.8 |
3-33 |
85 |
38 |
| JHS-8¡Á180 |
7" |
180 |
6.8 |
3-42 |
85 |
38 |
| JHS-8¡Á200 |
8" |
200 |
6.8 |
3-50 |
85 |
38 |
| JHS-8¡Á250 |
10" |
250 |
6.8 |
4-63 |
85 |
38 |
| JHS-8¡Á270 |
10 5/8" |
270 |
6.0 |
4-65 |
65 |
30 |
| JHS-8¡Á300 |
11 5/8" |
300 |
7.5 |
4-82 |
120 |
55 |
| JHS-8¡Á350 |
13 3/4" |
350 |
7.5 |
4-90 |
120 |
55 |
| JHS-8¡Á370 |
14 1/4" |
370 |
7.5 |
4-98 |
120 |
55 |
| JHS-8¡Á400 |
15 3/4" |
400 |
7.5 |
4-105 |
120 |
55 |
| JHS-8¡Á450 |
17 3/4" |
450 |
7.5 |
4-118 |
120 |
55 |
| JHS-8¡Á500 |
19 11/16" |
500 |
7.5 |
4-150 |
120 |
55 |
| JHS-8¡Á750 |
29 9/16" |
750 |
7.5 |
4-220 |
120 |
55 |
| JHS-9¡Á450 |
17 3/4" |
450 |
9.0 |
4-118 |
175 |
80 |
| JHS-9¡Á530 |
20 3/4" |
530 |
9.0 |
8-155 |
175 |
80 |
| JHS-9¡Á550 |
21 1/16" |
550 |
9.0 |
8-160 |
175 |
80 |
| JHS-9¡Á650 |
25 9/16" |
650 |
9.0 |
8-190 |
175 |
80 |
| JHS-9¡Á700 |
27 1/2" |
700 |
9.0 |
10-205 |
175 |
80 |
| JHS-9¡Á760 |
30" |
760 |
9.0 |
10-225 |
175 |
80 |
| JHS-9¡Á920 |
36 1/4" |
920 |
9.0 |
10-265 |
175 |
80 |
| JHS-9¡Á1020 |
40 1/6" |
1020 |
9.0 |
10-295 |
175 |
80 |
| JHS-9¡Á1150 |
45 1/4" |
1150 |
9.0 |
10-310 |
175 |
80 |
| JHS-9¡Á1210 |
47 3/4" |
1210 |
9.0 |
10-340 |
175 |
80 |
| JHS-9¡Á1350 |
53" |
1350 |
9.0 |
10-380 |
175 |
80 |
| JHS-10¡Á450 |
17 3/4" |
450 |
10.0 |
10-125 |
250 |
91 |
| JHS-10¡Á500 |
19 11/16" |
500 |
10.0 |
12-150 |
250 |
91 |
| JHS-12¡Á300 |
11 5/8" |
300 |
12.7 |
12-82 |
250 |
114 |
| JHS-12¡Á400 |
15 3/4" |
400 |
12.7 |
12-105 |
250 |
114 |
| JHS-12¡Á540 |
21 1/4" |
540 |
12.7 |
14-155 |
250 |
114 |
| JHS-12¡Á650 |
25 9/16" |
650 |
12.0 |
14-190 |
250 |
114 |
| JHS-12¡Á750 |
29 9/16" |
750 |
12.0 |
10-220 |
250 |
114 |
| JHS-12¡Á780 |
30 3/4" |
780 |
12.7 |
14-230 |
250 |
114 |
| JHS-13¡Á540 |
21 1/4" |
540 |
13.0 |
14-155 |
250 |
114 | |  |
