Product show

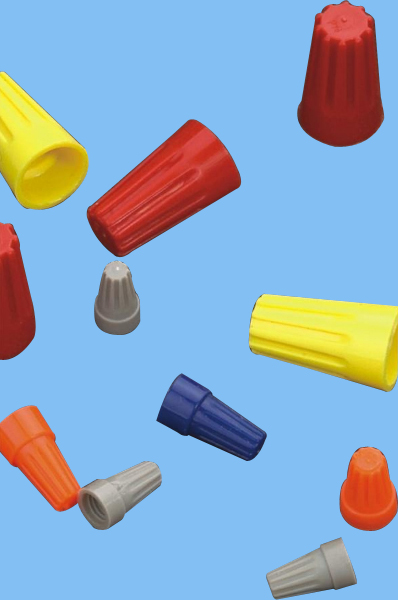

Screw on wire connectors

¡¤ Material: UL Nylon 66£¬with spring inside.
¡¤ Usage: peel wire coat£¬insert the wire in£¬then tighten.
ITEM.NO. H (mm) W (mm) D (mm) SUITABLE WIRES COLOR
JHS-P71 15 8.5 6.5 MIN#20¡Á1+#22¡Á1
MAX#16¡Á2		 Grey
JHS-P72 18 10 7.5 MIN#20¡Á3
MAX#16¡Á3		 Blue
JHS-P73 20 11.5 9.5 MIN#20¡Á3
MAX#16¡Á3+#18¡Á1		 Orange
JHS-P74 23.5 13.5 10.8 MIN#14¡Á1+#18¡Á1
MAX#14¡Á4+#18¡Á1		 Yellow
JHS-P75 23.5 15.5 12.7 MIN#14¡Á2
MAX#10¡Á2+#12¡Á2		 Red
