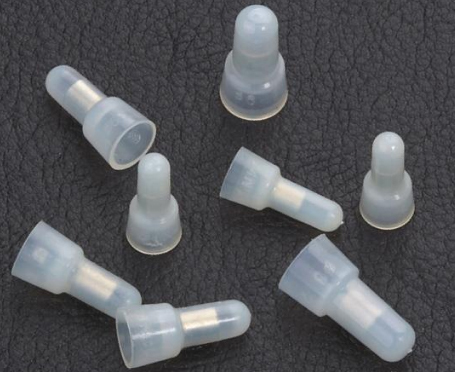

Safety-type wire joints
 |
”¤ Shell material: Nylon 66£¬94V-2£¬certificated agree,by UL.
”¤ Usage: Peel the coat of wire, then insert to tube, use pincers to fix them.
”¤ Feature: Nylon shell, long copper tube, easy to conduct electricity and hold wire tightly. |
| ITEM.NO. |
H(mm) |
W |
D (mm) |
SUITABLE WIRES |
| B(mm) |
C(mm) |
mm2 |
AMG |
| JHS-§¶3 |
18 |
9 |
3.6 |
2.8 |
1.25 |
22-16 |
| JHS-§¶4 |
21 |
9.5 |
3.9 |
3 |
2 |
16-14 |
| JHS-§¶5 |
22.5 |
10.5 |
4.8 |
4 |
5.5 |
12-10 |
| JHS-§¶6 |
24 |
12 |
5.6 |
4.8 |
8 |
8 |
| JHS-§¶7 |
25.5 |
13 |
6.5 |
5.5 |
10 |
8-6 |
| JHS-§¶8 |
25.5 |
14 |
7.5 |
6 |
13 |
6 |
| JHS-§¶10 |
29.5 |
15.5 |
9.3 |
7.8 |
16 |
4 | | |
