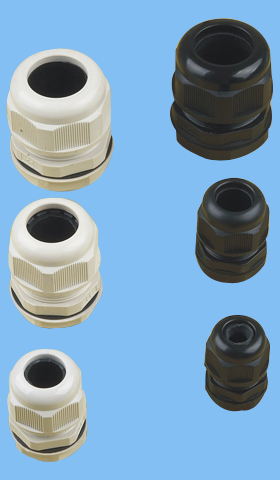

Nylon cable glands(metric)
¡¤ Threaded entry: Metric
¡¤ Color: black and grey
¡¤ Working temperature: -40¡æ-100¡æ, the item can also endure 120¡æ instantly
¡¤ protection: IP68
¡¤ Standard: IEC698 |
| ITEM.NO. |
Threaded entry metric
(mm) |
Cable range§¶
(mm) |

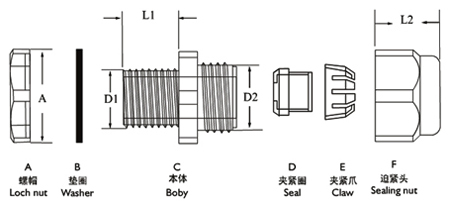

D1 |
D2 |
Panel mounting hole
(mm) |
L1 |
L2 |
A(mm) |
| MG-12 |
M12¡Á1.25 |
7.6-4.6 |
12 |
M16¡Á1.5 |
12.5 |
8.5 |
16 |
19 |
| MG-16 |
M16¡Á1.5 |
10-6 |
16 |
M20¡Á1.5 |
16.5 |
15 |
19.5 |
24 |
| MG-20 |
M20¡Á1.5 |
14-9 |
20 |
M25¡Á1.5 |
20.5 |
15 |
21.5 |
30 |
| MG-25 |
M25¡Á1.5 |
18-13 |
25 |
M31¡Á2 |
25.5 |
15 |
24.5 |
36 |
| MG-32 |
M32¡Á1.5 |
25-18 |
32 |
M38¡Á2 |
33 |
15 |
27.5 |
46 |
| MG-40 |
M40¡Á1.5 |
30-24 |
40 |
M46¡Á2 |
41 |
20 |
31 |
54 |
| MG-50 |
M50¡Á1.5 |
39-30 |
50 |
M58¡Á2 |
51 |
23 |
37 |
67 |
| MG-63 |
M63¡Á1.5 |
48.5-40 |
63 |
M72¡Á2 |
64 |
24 |
42 |
81.5 | |
 | |
