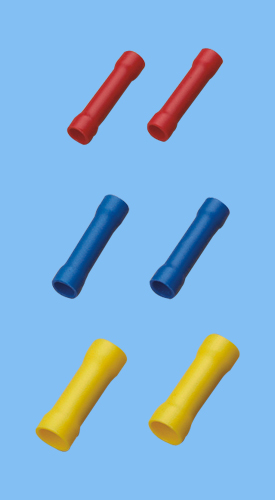

Insulated Butt Connectors
 |
| ITEM.NO. |
CLNLE SQ |
DIMENSION |
IMAX |
INSULATION COLOR |
| A.W.G |
mm2 |
I(mm) |
D งถ(mm) |
L(mm) |
| BV1.25 |
22กซ16 |
0.5กซ1.5 |
15.0 |
1.7 |
26.0 |
19A |
Red |
| BV2 |
16กซ14 |
1.5กซ2.5 |
15.0 |
2.3 |
26.0 |
27A |
blue |
| BV5.5 |
12กซ10 |
4กซ6 |
15.0 |
3.4 |
26.0 |
48A |
yellow |
| BV8 |
#8 |
6กซ10 |
21.0 |
4.5 |
32.0 |
62A |
red |
| BV14 |
#6 |
10กซ16 |
26.0 |
5.8 |
42.0 |
88A |
blue |
| BV22 |
#4 |
16กซ25 |
29.0 |
7.7 |
50.0 |
115A |
yellow |
| BV38 |
#2 |
35กซ50 |
32.0 |
9.4 |
55.0 |
160A |
red | |
| |
| ITEM.NO. |
CLNLE SQ |
DIMENSION |
IMAX |
INSULATION COLOR |
| A.W.G |
mm2 |
I(mm) |
D งถ(mm) |
L(mm) |
| PVT1.25 |
22กซ16 |
0.5กซ1.5 |
8.0 |
1.7 |
16.0 |
19A |
Red |
| PVT2 |
16กซ14 |
1.5กซ2.5 |
8.0 |
2.3 |
16.0 |
27A |
blue |
| PVT5.5 |
12กซ10 |
4กซ6 |
8.5 |
3.4 |
20.5 |
48A |
yellow | | |
